Familiarizing Linux Filesystems

Pre-test

Answer all 5 questions, then press Check answers.

1. In Linux, where does the entire directory tree start?

AC:\B/C~D/home

2. Which directory typically stores system-wide configuration files?

A/varB/etcC/tmpD/opt

3. What is a ‘mount point’?

AA backup location for important filesBA directory where a filesystem is attached to the main treeCA type of file permissionDA kernel module for networking

4. Which virtual filesystem exposes live information about running processes?

A/etcB/procC/srvD/opt

5. What kind of data is typically stored in /var/log?

AUser home directoriesBSystem and application log filesCTemporary files that are cleared on rebootDThird-party installed software

0 of 5 answered

---

Big Tree

Linux organizes everything in a single tree that starts at / (called “root”, which is different from root as user). There is no C:\ or D:\ letters, a second disk, a USB stick, or a network share basically everyhing in a big tree.

This layout follows the Filesystem Hierarchy Standard (FHS), the same layout across distros. That’s why a user who learns one distro can navigate the same way.

Everything is a file. Devices, running processes, and even kernel settings are a files you can read and write.

---

Directories**

Path	What is this?
/bin	Directory that contains binaries, which is some application that you can run (like ls command).
/boot	Directory that contains files required for starting your system.
/dev	Directory that contains device files (when you plug a USB it will pop up here as a raw block device).
/etc	Directory that contains everything that you can configure.
/home	Directory for your user.
/lib	Directory where libraries files live that applications can use.
/media	Directory where external storage will be automatically mounted.
/mnt	Directory where you would manually mount storage devices or partition.
/opt	Directory for your add-on or third party software.
/proc	Directory that contains informations of your computer.
/root	Directory of the superuser (Administrator).
/run	Directory for your temporary systems data.
/sbin	Directory like /bin but for superuser.
/usr	Directory that is a secondary hierarchy for read only user data.
/srv	Directory that contains data for servers (like web server or html files would go here /srv/www).
/tmp	Directory that contains temporary files.
/var	Directory that holds all data that changes frequently during normal use.

Why this matters: if you’re familiar with it, you can guess where to look for a problem before you’ve ever touched a specific server. A service crashing? Check its config in /etc and its output in /var/log.

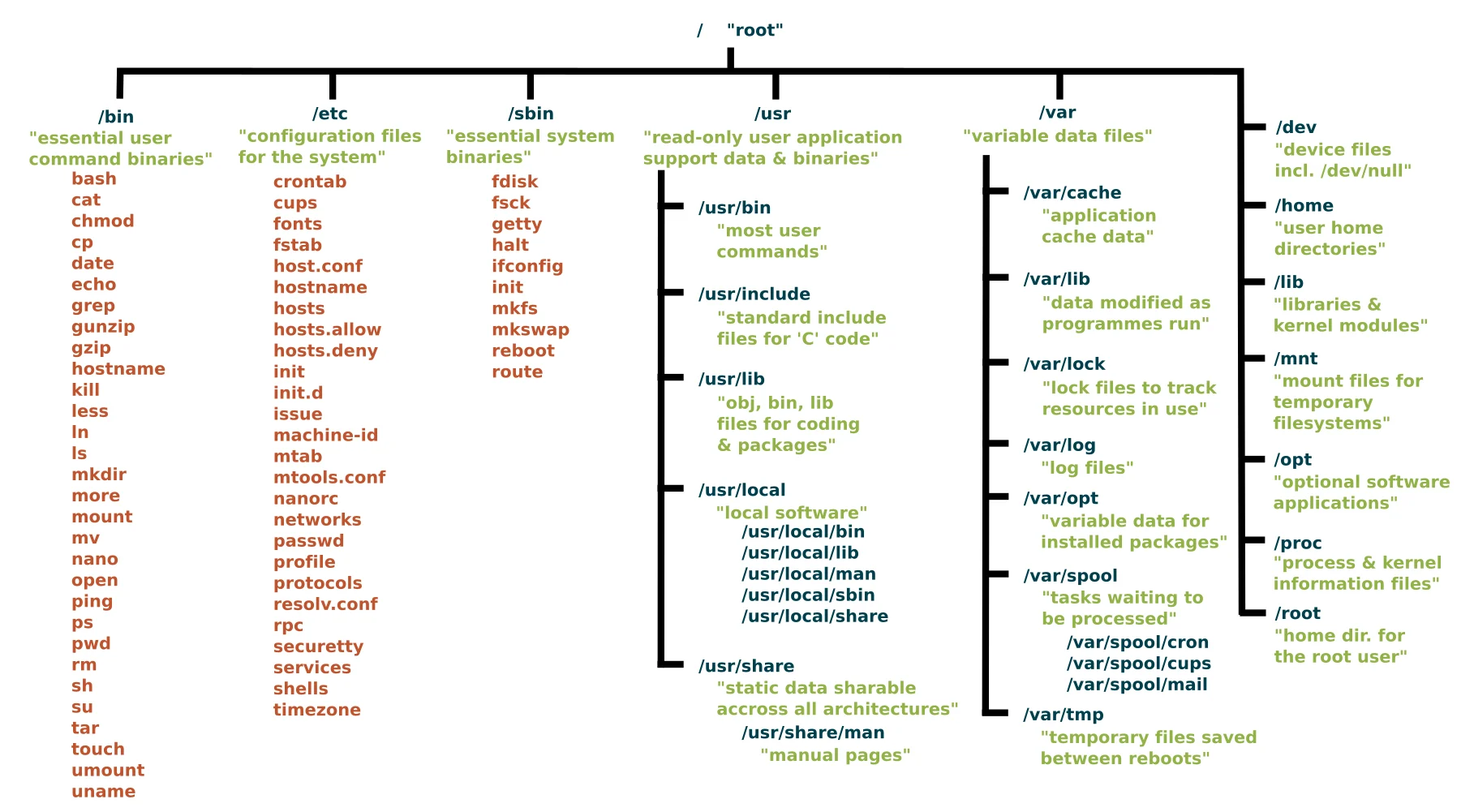

Check out the detail of the directory tree HERE

---

A Quick Word on Filesystem Types

The directories above live on top of an actual filesystem format, the way data is structured on disk. The most common ones you’ll meet:

Filesystem	Notes
ext4	The long-time Ubuntu/Debian default. Mature and reliable.
xfs	Common on RHEL/Rocky. Great with very large files, can grow but not shrink.
btrfs	Supports snapshots and built-in volume management.

You rarely need to think about this day to day, it matters mainly when creating a new filesystem (covered in the Storage module) or reading kernel documentation such as the Linux kernel filesystem docs.

# Command to check
df -T /

df -Th # all mounted filesystems types

lsblk -f # per device view

---

Inodes Are The Real Thing

A filename is just a label pointing at an inode, a record holding the file’s metadata (owner, permissions, timestamps, and where its data blocks live on disk). The name and the data are two separate things.

This are important because, two different names can point to the same inode.

	Hard link	Symlink (Shortcut)
Points to	Points directly to the same inode as the original	Stores a path to the target
Original deleted?	Data survives (inode still has a name)	Broken Link (path no longer resolves)
Link a folder?	No	Yes
Cross drives?	No	Yes
Command	ln target linkname	ln -s target linkname

# Command to check files data/metadata/inode
ls -i <filename>

stat <filename>

df -i / # inode usage on a file system

Note: hard links cannot cross filesystems or point to directories; symlinks can do both. When you’re stuck, just use symlink.

---

Key Commands Cheat Sheet

Command	What it does
pwd, cd, ls -lah	Where am I, move around, list with sizes and hidden files
find PATH -type f -name '*.log' -size +1M	Search by name, type, size (-mtime -7 for age)
cp -a, mv, rm -i	Copy keeping metadata, move/rename, remove with a confirmation prompt
ln, ln -s	Create a hard link, create a symbolic link
stat, ls -li	Show inode number, link count, permissions, timestamps
man <command>, <command> --help, tldr <command>	Built-in documentation, look things up instead of memorizing

---

Practice

Practice: filesystem commands

Type the command for each task, then press Check answers. Adding flags in a different (valid) order or adding sudo is fine.

Task	Command	Result
Print the current working directory
List all files, including hidden ones, in long format with human-readable sizes
Find all .log files under /var/log larger than 1 MB
Show a file’s inode number and hard link count
Create a symbolic link named link.txt pointing to target.txt

0 of 5 filled in

---

Hands-On Cases

Scenario: You’ve been asked to investigate disk usage on a server, prove that a backup was copied safely, and understand why a coworker’s symlink suddenly broke.

Try each step yourself first, then open the solution to check.

Case 1: Find the largest log files

Goal: List every .log file under /var/log larger than 1 MB, biggest first.

Show solution

# create a test file first if your VM has few large logs
sudo fallocate -l 5M /var/log/lab-test.log

# find, then sort numerically, then make the sizes human readable
sudo find /var/log -type f -name "*.log" -size +1M -printf '%s\t%p\n' | sort -rn | numfmt --to=iec --field=1

Command Explanation

Part	What it does
sudo find /var/log	Search inside /var/log
-type f	Only files, not folder
-name "*.log"	Wildcards with files ending with .log
-size +1M	Files bigger than 1 MB
-printf '%s\t%p\n'	Print size in bytes, then tab, then the path
sort -rn	Pipe the output to sort numerically, reverse (biggest first)
numfmt --to=iec --field=1	Convert column 1 (the byte count) into human readable form

# cleanup
sudo rm /var/log/lab-test.log

Case 2: Prove a backup copy is identical

Goal: Copy /etc/ssh to ~/backup preserving ownership, permissions, and timestamps, then prove the copy matches.

Show solution

mkdir -p ~/backup
sudo cp -a /etc/ssh ~/backup/
sudo diff -r /etc/ssh ~/backup/ssh && echo "IDENTICAL"

Command Explanation

Part	What it does
mkdir -p <name>	create a directory
cp -a <file1> <file2>	copy a file with the option of archive
diff -r <file1> <file2> && echo "IDENTICAL"	differentiate file1 with file2 and output the word “IDENTICAL”

# cleanup
sudo rm -rf ~/backup

Case 3: Hard link vs. symbolic link

Goal: Create a hard link and a symlink to the same file, delete the original, and see which one still works.

Show solution

mkdir ~/linklab && cd ~/linklab
echo "hello" > original.txt
ln original.txt hard.txt      # hard link
ln -s original.txt soft.txt   # symbolic link

ls -li   # hard.txt shares the inode number with original.txt; link count is 2

rm original.txt

cat hard.txt   # prints "hello", the data still has one remaining name
cat soft.txt   # cat: soft.txt: No such file or directory (dangling link)

The hard link still works because the inode still has one name left. The symlink only stored the path original.txt, which no longer exists, so it dangles. ls -l shows a broken symlink in red on most terminals.

# cleanup
cd ~ && rm -rf ~/linklab

Case 4: Create a partition and mount it (XFS)

Goal: Format a “disk” with the XFS filesystem and attach it to the tree at a mount point.

This uses a loop file, a regular file that Linux can treat as if it were a whole disk. It’s the safe way to practice without touching real hardware. On a real second disk, swap the loop device for the actual device name (e.g. /dev/sdb1), after confirming it with lsblk first, formatting destroys data.

Show solution

# 1. Install the XFS tools
sudo apt install -y xfsprogs

# 2. Create a 1 GB file and attach it as a loop device (acts like a disk)
sudo truncate -s 1G /var/lib/lab-disk.img
NEWDISK=$(sudo losetup -f --show /var/lib/lab-disk.img)
echo "$NEWDISK"          # e.g. /dev/loop20

# 3. Format it with XFS (-f forces formatting and skips warnings)
sudo mkfs.xfs "$NEWDISK" -f

# 4. Create a mount point and mount it
sudo mkdir -p /mnt/lab-data
sudo mount "$NEWDISK" /mnt/lab-data

A mount point is just an empty directory that becomes the “entry door” into another filesystem once you mount something onto it. Anything already inside that directory is hidden (not deleted) while the mount is active.

# 5. Verify: it should show up like any other filesystem
df -hT /mnt/lab-data

echo "hello from XFS" | sudo tee /mnt/lab-data/test.txt
cat /mnt/lab-data/test.txt

# cleanup: unmount, detach the loop device, remove the file
sudo umount /mnt/lab-data
sudo losetup -d "$NEWDISK"
sudo rm -f /var/lib/lab-disk.img
sudo rmdir /mnt/lab-data

Going further: a real, persistent setup would add a line to /etc/fstab referencing the disk’s UUID (from blkid) so it mounts automatically on every boot.

---

Glossary

Term	Detail
FHS	Filesystem Hierarchy Standard, the convention for where things live
Inode	Metadata record (owner, permissions, timestamps, data location) that a filename points to
Hard link	Another filename pointing to the same inode
Symbolic (soft) link	A small file that stores a path to another file
Mount point	A directory where a filesystem is attached to the tree
Virtual filesystem	A filesystem generated on the fly by the kernel (/proc, /sys, /dev)
Dangling link	A symlink whose target no longer exists
Partition	A defined slice of a disk that a filesystem can be created on
Loop device	A regular file made to behave like a block device (disk) for testing

---

Finish

Thank you for reading or following until the end!

---

Post-test

Answer all 5 questions, then press Check answers.

1. You delete original.txt after creating hard.txt as a hard link to it. What happens to the data?

AIt is deleted immediatelyBIt survives, because the inode still has one remaining nameCIt becomes corruptedDIt automatically moves to /tmp

2. You delete original.txt after creating soft.txt as a symbolic link to it. What happens when you try to read soft.txt?

AIt still works normallyBIt becomes a dangling link and reading it failsCIt silently turns into a hard linkDThe terminal crashes

3. Which command copies a directory while preserving ownership, permissions, and timestamps?

Acp -rBcp -aCmvDcp -v

4. Why is find /path -exec ls -lhS {} + not reliable for finding the single largest files across a big directory tree?

AIt only sorts within each batch of results passed to ls, so the overall order across the whole tree can be wrongBIt permanently deletes the files it findsCIt cannot be combined with -type or -nameDIt only works as root

5. What can a symbolic link do that a hard link cannot?

APoint to a directory or cross into a different filesystemBStore more dataCSurvive without a target fileDBe created without root access

0 of 5 answered
